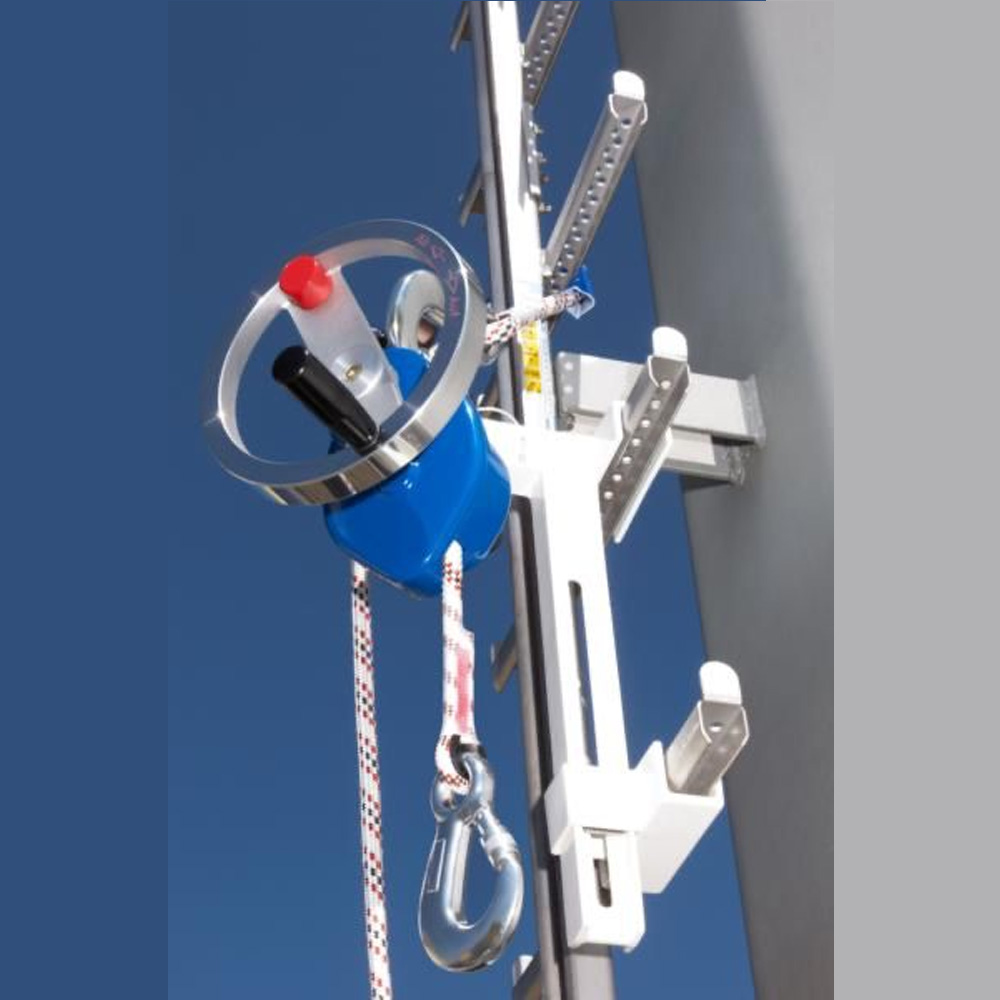

Rescue equipment AG10 Hub E is mainly designed as a descent and evacuation system in emergency situations at wind turbines. This Kit has an adjustable bracket to mount the device steadily on to the rungs of a ladder.
AG10 Hub E
Features:
- Certifications: CE EN 341 and EN 1496.
- Safe Working Load: 225 Kg.
- Standard descend speed: 0.7 m/s.
- Rope: 9mm Kernmantle Rope 160m length
- Centrifugal braking mechanism helps control the speed of descend.
- Clamp cleats on the devices help in staying suspended at a height
Kit consists of:
- 1 pc. Descender Device AG10 Hub E
- 1 pc. core sheathed rope 9mm manufactured as abseiling rope with
carabiner Alu 235 on both rope ends, length 160m - 1 pc. work positioning rope, core sheathed rope 12mm manufactured with carabiner Alu 235 and rope clamp SK 12-16 with carabiner Alu B1,
Length 1,5m - 1 pc. Guided type fall arrester onf flexible anchorage line – core sheathed rope 12mm manufactured with Pipe hook RHK 60 and rope clamp SK 12-16 with carabiner Alu B1, length 7m RHK60-KM12-SK12/16-AluB1-7m-EK EN 353-2 CE 0511
- 1 pc. Rope clamp HK 12-16 with carabine Alu B1
- 1 pc. Edge Protector with strap and carabiner Alu B1
- 1 pc. Device to keep away the rope with strap and carabiner Alu B1
- 1 pc. Anchorage sling AB 25, length 1,5m
- 1 pc. yellow accessory bag
- 1 pc. Device bag, big, strong material
